DGSAT’s MCU-700 series devices enable remote data acquisition, evaluation and control of a variety of external devices and sensors.
Complemented with the unique world wide coverage of Iridium’s satellites (pole to pole) and the reliability of operation in the L-Band frequency, it offers a key solution to corporate customers to monitor and control their appliances remotely and effectively.
The MCU-700 series is controlled via an intuitive web-based Monitoring and Control Panel (MCP) which offers a full overview of all running devices and implements Smart Programming Blocks for easy (Over the Air) OTA programming.

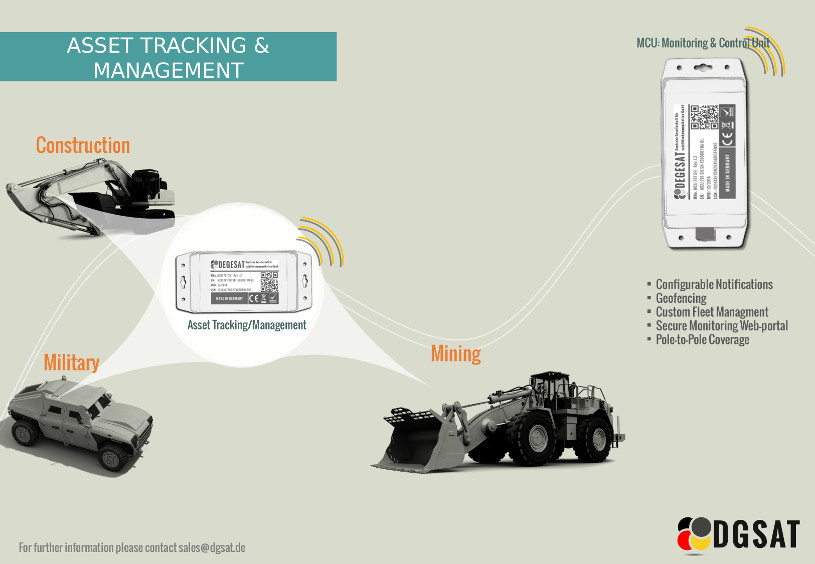

The MCU-700 series can either be used for Worldwide Asset Tracking purposes, or Remote Monitoring and Controlling of Industrial Machines.

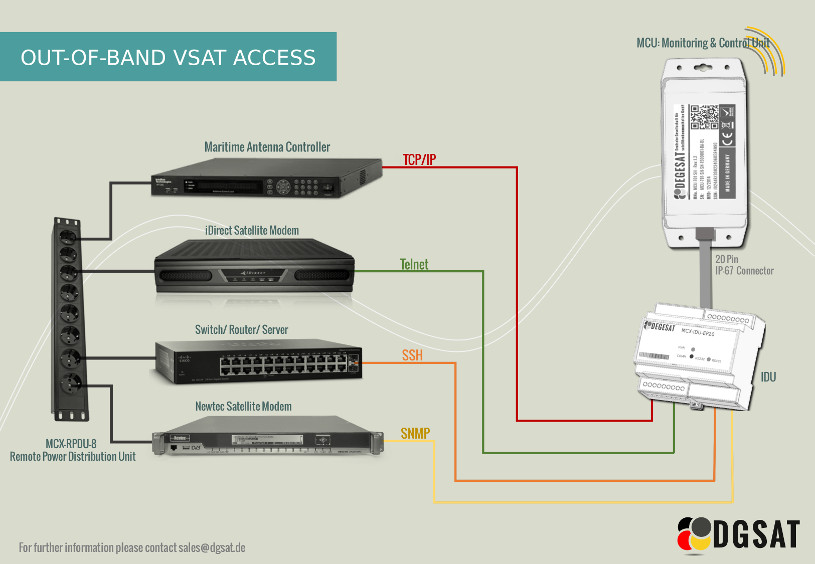

Additionally the MCU-700 series offer an Out-of-Band Access Mode that is tailored for the VSAT and the IT field, enabling reliable remote connectivity to various Satellite Modems, and Switches / Servers.
Sectors
Key features
- Small size for optimal integration on field
- Harsh Environment ready (IP67 rating)
- Intelligent Over the Air (OTA) programming via DEGESAT’s Monitoring&Control Portal (MCP)
- Fully autonomous operation, simply plug and play
- Integrated backup batteries offering a standby time of up to 10 years
- Integrated 72-channel High precision GPS Receiver (–167 dBm navigation sensitivity)
- Integrated 3-Axis Accelerometer (Acceleration/Tilt detection)
- Integrated L-Band and GPS Antennas
Product Leaflet
Globalstar Satellite Coverage Maps
Please contact sales@dgsat.de for the full MCU Manual
Advantages
- Multi-protocol support (RS-232/485, TCP/UDP, SSH, Telnet, SNMP)
- Easy to integrate with new devices
- 4x Digital inputs, 4x Digital outputs
- 4x 10bit ADC (sensing range 0-70 V)
- Ultra low power consumption design (~90uA @ sleep)
- Expandable system design
- Reliable L-Band duplex communication
Available Models:
| Models: | Description |
|---|---|
| MCU-701-HR2 | Iridium Network & Cellular Hybrid |
| MCU-702-HG1 | Globalstar Network & Cellular Hybrid |
| MCU-701-SR2 | Iridium Network Coverage Only |
| MCU-701-SG1 | Globalstar Network Coverage only |
Accessories:
| Part: | Description |
|---|---|
| MCX-RPDU-4 | Remote Power Distribution Unit (4 plug)https://www.iridium.com/support/CoverageMaps.aspx |
| MCX-RPDU-8 | Remote Power Distribution Unit (8 plug) |
| MCX-IDU-EP20 | Industrial DIN-Rail Extension Unit IDU |
| MCX-PWR-ID5 | Industrial DIN-Rail Power supply Unit |

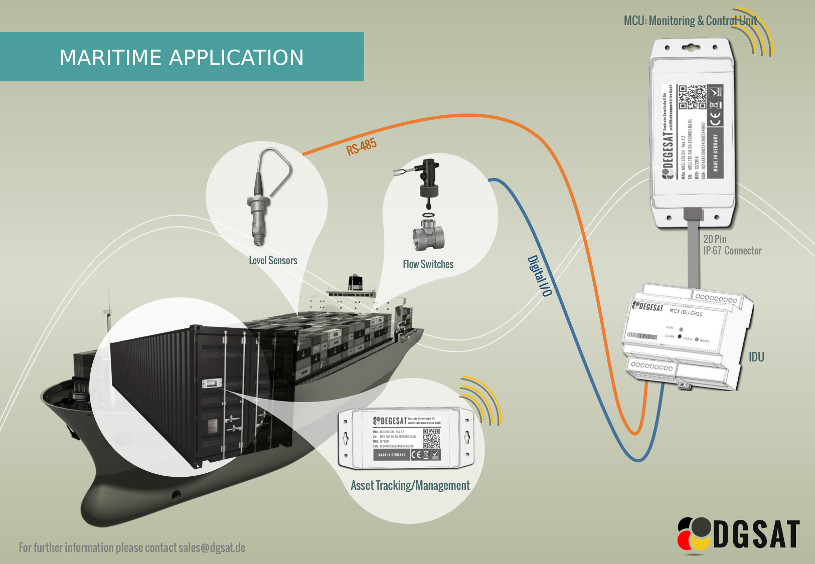

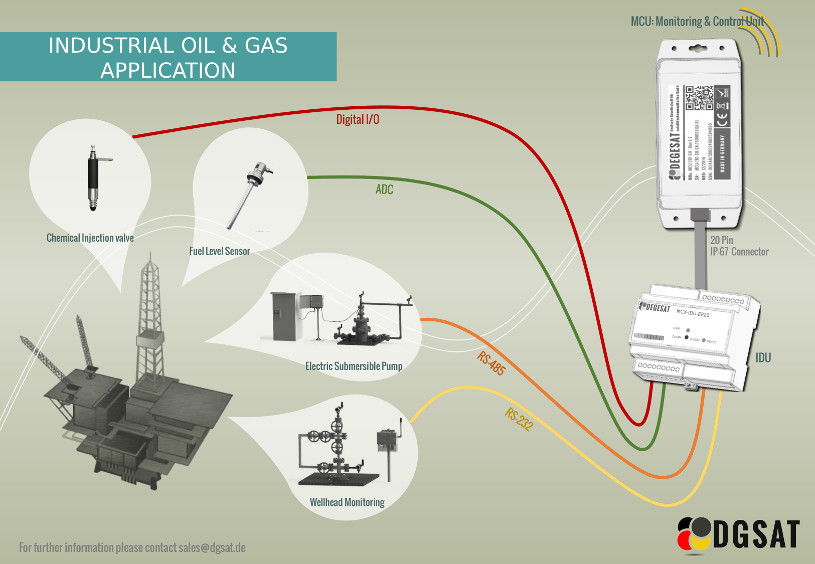

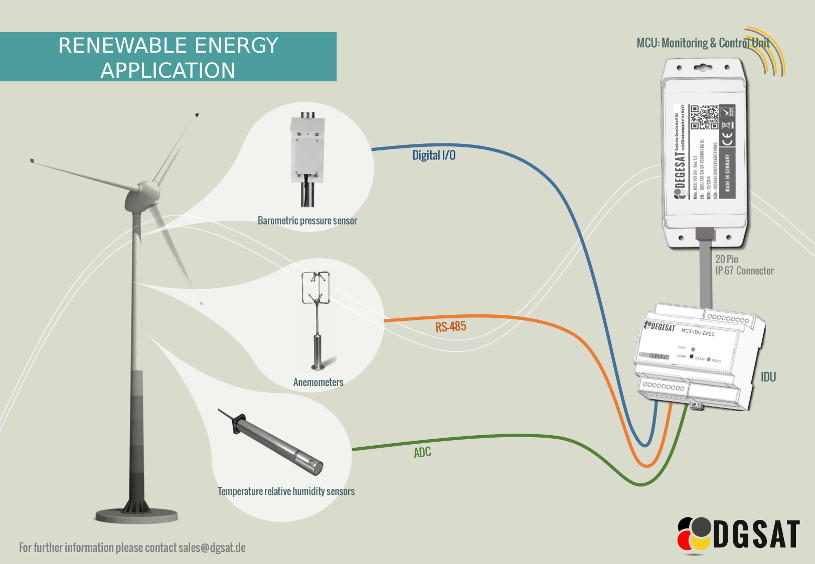

Typical Use Cases
